MVP MIDSIZE VIDEO PATCHBAY SERIES
MVP32K3*75T
MVJ*75T

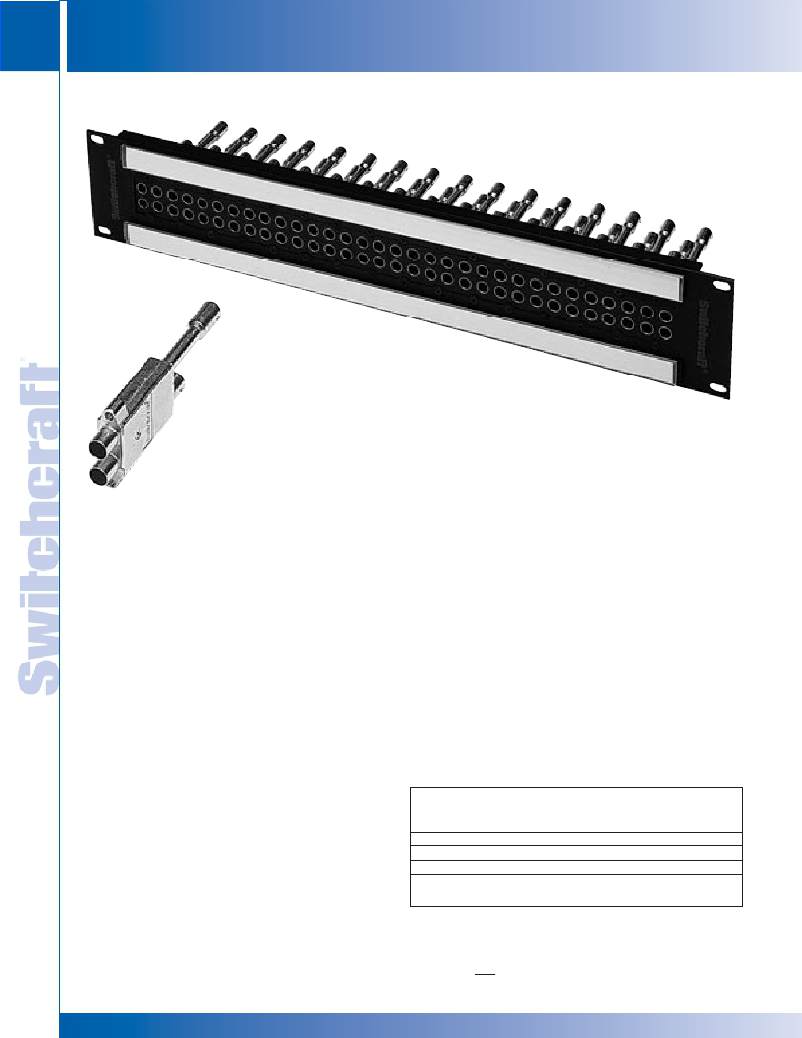

The MVP Series video patchbays offer outstanding
performance and high density. Patchbays consist of
32 jacks in either 1RU or 2RU heights, jacks come either
terminated or non-terminated. These jacks are rated
from DC to 3 GHz, and are rated at 30,000 lifecycles.
FEATURES AND BENEFITS
? Midsize video jacks rated from DC to 3 GHz
? 32 midsize jacks mounted either 1RU, 1.5RU or 2RU panel
? Available in terminated or non-terminated configurations
SPECIFICATIONS
MATERIAL
Frame: Aluminum, black anodized
Designation Strips: Vinylite, white
Designation Strip Covers: Lexan, transparent
Jack Inserts: Thermoplastic, UL 94V-0 rated
MIDSIZE VIDEO JACK SPECIFICATIONS
ELECTRICAL
Rated Bandwidth: 3.0 GHz
Characteristic Impedance: 75 ohms
Return Loss: See Typical Return Loss Chart
Insertion Loss: See Typical Insertion Loss Chart
MATERIAL
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy, gold plated
Switching Springs: Copper alloy, gold plated
Grounding Contacts: Copper alloy, gold plated
BNC Insulators: Teflon
Actuators: Thermoplastic, UL94V-0 rated
ENVIRONMENTAL
Operating Temperature: – 40oC to 65oC
Storage Temperature: – 55oC to 85oC
Thermal Shock: Per MIL-STD-202, Method 107
Moisture and Humidity: Per MIL-STD-202, Method 106
Ordering Information
Contact Resistance: Less than 20 milliohms
Part
Type
Termination Resistance: 75 W, ±1%
Center Conductor: Accepts .048 pin diameter
Number
MVP32K1*75T
of Jack Height
Midsize 1.75"
Description
Terminated
MECHANICAL
Mechanical Shock: Per MIL-STD-202,
Method 213, Test condition I
Vibration: Per MIL-STD-202, Method 201
Insertion Force: 12 lbs. maximum
Withdrawal Force: 3 lbs. minimum
Life Cycle: 30,000
MVP32K1*NT Midsize 1.75"
MVP32K3*75T Midsize 3.5"
MVP32K3*NT Midsize 3.5"
* Add “N” for non-normalled version
Note: For 1.5RU (2.62" height), use K2
Non-terminated
Terminated
Non-terminated
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
